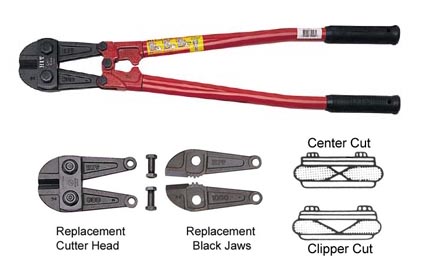

For general purpose use, designed for cutting medium steel and soft bolts, nuts, rods, chain, etc. |
|
Maximum hardness of material to be cut: Brinell 370/Rockwell C42, 85 Tons/Sq. 133 Kg/square mm. |
|
Jaws are made of drop forged high grade alloy tool steel with heat treated, precision cutting edges for longer cutting life. |
|
Comfortable rubber handles for gripping firmly and safely. |
|
Exceeds U.S. Federal specification number GGG-C-740d Type II. |
| Stock No. |
Overall Length |
Cap. HRC-42 |
Jaw Type |
Wt. (Lb) |
Replacement Head |
Replacement Jaws |
| 22-BC12H |
12" |
3/16" (5mm) |
Clipper Cut |
2 |
22-BC12B |
22-BC12J |
| 22-BC14H |
14" |
1/4" (7mm) |
Clipper Cut |
2 1/2 |
22-BC14B |
22-BC14J |
| 22-BC18H |
18" |
5/16" (8mm) |
Clipper Cut |
3 1/2 |
22-BC18B |
22-BC18J |
| 22-BC24H |
24" |
3/8" (10mm) |
Center Cut |
6 1/2 |
22-BC24B |
22-BC24J |
| 22-BC30H |
30" |
7/16" (11mm) |
Center Cut |
9 1/4 |
22-BC30B |
22-BC30J |
| 22-BC36H |
36" |
1/2" (13mm) |
Center Cut |
14 1/4 |
22-BC36B |
22-BC36J |
| 22-BC42H |
42" |
9/16" (14mm) |
Center Cut |
21 |
22-BC42B |
22-BC42J |
|
