Durable jaws are made of forged high tensile steel with special heat treating, designed for cutting hard material, spring wire guys, hardened chains, high-tensile bolts, etc. |
|
Max. hardness of material to be cut: Brinell 450/Rockwell C48, 110 Tons/Sq. 162 kg/ sq. mm. |
|
Comfortable rubber handles for gripping firmly and safely. |
|
Exceeds U.S. Federal Specification number GGG-C-740d Type II. |
|
Handles filled with unicellular foam core and tested per OSHA specifications for hot line and observe all applicable working clearances when cutting energized conductors. |

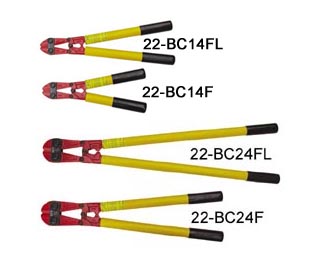

| Stock No. |
Capacity (48 HRC) |
Handle Length |
Overall Length |
Jaw Type |
Wt. (Lb) |
Replacement Head |
| 22-BC14FL |
3/16" (5mm) |
12" |
18" |
Clipper Cut |
3-1/2 Lbs. |
22-BC14RB |
| 22-BC14F |
3/16" (5mm) |
8" |
14" |
Clipper Cut |
2-1/3 Lbs. |
22-BC14RB |
| 22-BC18FL |
7/32" (5.5mm) |
18" |
25" |
Clipper Cut |
3 Lbs. |
22-BC18RB |
| 22-BC18F |
7/32" (5.5mm) |
11" |
18" |
Clipper Cut |
3-1/2 Lbs. |
22-BC18RB |
| 22-BC24FL |
9/32" (7mm) |
24" |
32" |
Center Cut |
5 Lbs. |
22-BC24RB |
| 22-BC24F |
9/32" (7mm) |
16" |
24" |
Center Cut |
6 Lbs. |
22-BC24RB |
| 22-BC30F |
5/16" (8mm) |
21" |
30" |
Center Cut |
8 Lbs. |
22-BC30RB |
| 22-BC36F |
11/32" (9mm) |
26" |
36" |
Center Cut |
13 Lbs. |
22-BC36RB |
|
