Wire Grips >>WIRE GRIPS

Wire Grips

Add to Quote

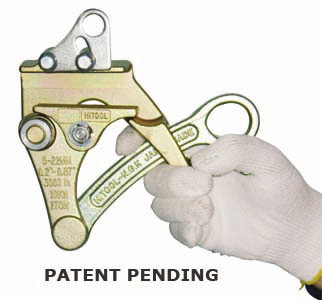

	Pull the trigger by one hand and the grip will be opened easily and release instantly to quickly insert or remove wire.
	Special designed for gripping a wider range of cables.
	Forged alloy steel construction is durable yet lightweight, yellow chromate finish protects grips from rust and corrosion.
	Widely to be used in the power, communications, and general construction fields to pull wire and cable. Used for pulling up lines to tension only. Not to be used as anchors.
	Jaw is available for large teeth, aggressive teeth, and fine teeth for different applications.
	Note:
	*Swing Latch is an option, when Swing Latch feature is desired, add prefix letter "L" after stock No. (example: 16-TG48CL)
	*Only 16-TG30, 16-TG45, and 16-TG46 can be used for Guy Strand.
	*Model 16-TG20 can not be used for Wire Rope and EHS.
	*Grip No. with R are Hot-Line Grip with Hot Stick Ring.
	Warning:
	Do not exceed rated capacity and always match proper size and type of grip to application. Before each use, make sure to clean jaw area and inspect grip for proper operation to avoid slippage.

Stock No.	Safety Load	Min. Cable	Max. Cable	Jaw Length	Weight	Cable Type
16-TG30	3000 Lbs.	.196" (5mm)	.87" (22mm)	2-3/4" (70mm)	2.2 Lbs.	Bare AL, AAC, ACSR, ACSS, CU Cable
*16-TG45	5000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.3 Lbs.	Bare AL, AAC, ACSR, ACSS, CU Cable, *Guy Strand
16-TG45M	5000 Lbs.	.196" (5mm)	1.1" (28mm)	4-3/4" (120mm)	4.2 Lbs	Bare AL, AAC, ACSR, ACSS, CU Cable
16-TG45W	5000 Lbs.	.63" (16mm)	1.38" (35mm)	4-3/4" (120mm)	4.4 Lbs.	Bare AL, AAC, ACSR, ACSS, CU Cable
*16-TG46	8000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.8 Lbs.	Bare AL, AAC, ACSR, ACSS, CU Cable, *Guy Strand
16-TG48	9000 Lbs.	0.7" (18mm)	1.38" (35mm)	4-3/4" (120mm)	5.2 Lbs.	Bare AL, AAC, ACSR, ACSS, CU Cable
16-TG47	13000 Lbs.	0.7" (18mm)	1.41" (36mm)	7" (180mm)	9.9 Lbs.	Bare AL, AAC, ACSR, ACSS, CU Cable
16-TG49	15000 Lbs.	1.2" (28mm)	1.81" (46mm)	8-3/4" (220mm)	15 Lbs.	Bare AL, AAC, ACSR, ACSS, CU Cable
16-TG451	5000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.3 Lbs.	Hot-Line Grip Spring Loaded Latch Handle
16-TG461	8000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.8 Lbs.	Hot-Line Grip Spring Loaded Latch Handle
16-TG481	9000 Lbs.	0.7" (18mm)	1.38" (35mm)	4-3/4" (120mm)	5.2 Lbs.	Hot-Line Grip Spring Loaded Latch Handle
16-TG451R	5000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.3 Lbs.	Hot-Line Grip Spring Loaded Latch Handle
16-TG461R	8000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.8 Lbs.	Hot-Line Grip Spring Loaded Latch Handle
16-TG481R	9000 Lbs.	.7" (18mm)	1.4" (35mm)	4-3/4" (120mm)	5.2 Lbs.	Hot-Line Grip Spring Loaded Latch Handle
16-TG452	5000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.3 Lbs.	Hot-Line Grip, No Spring, No Notch
16-TG462	8000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.8 Lbs.	Hot-Line Grip, No Spring, No Notch
16-TG482	9000 Lbs.	0.7" (18mm)	1.38" (35mm)	4-3/4" (120mm)	5.2 Lbs.	Hot-Line Grip, No Spring, No Notch
16-TG30C	3000 Lbs.	.196" (5mm)	.87" (22mm)	2-3/4" (70mm)	2.4 Lbs.	CU, Covered, and Tree Cables, Guy Strand
16-TG45C	5000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.3 Lbs.	CU, Covered, and Tree Cables, Guy Strand
16-TG45MC	5000 Lbs.	.196" (5mm)	1.1" (28mm)	4-3/4" (120mm)	4.2 Lbs	CU, Covered, and Tree Cables, Guy Strand
16-TG45LC	5000 Lbs.	.63" (16mm)	1.38" (35mm)	4-3/4" (120mm)	4.4 Lbs.	CU, Covered, and Tree Cables, Guy Strand
16-TG48C	9000 Lbs.	0.7" (18mm)	1.38" (35mm)	4-3/4" (120mm)	5.2 Lbs.	CU, Covered, and Tree Cables, Guy Strand
16-TG48CL	9000 Lbs.	0.7" (18mm)	1.38" (35mm)	4-3/4" (120mm)	5.2 Lbs.	CU, Covered, and Tree Cables, Guy Strand
*16TG20	2200 Lbs.	.102" (2.6mm)	.59" (15mm)	---	1.3 Lbs.	CU, Covered, Tree Cables, Guy, EHS
16-TG45A	5000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	3.3 Lbs.	CU, Covered, Tree Cables, Guy, EHS, Wire Rope
16-TG46A	8000 Lbs.	.196" (5mm)	.87" (22mm)	3-1/2" (90mm)	4 Lbs.	CU, Covered, Tree Cables, Guy, EHS, Wire Rope
16-TG50A	12000 Lbs.	.315" (8mm)	1.1" (28mm)	5-1/2" (140mm)	7.2 Lbs.	CU, Covered, Tree Cables, Guy, EHS, Wire Rope
16-TG25	2200 Lbs.	.118" (3mm)	.513" (13mm)	2" (50mm)	1.3 Lbs	Bare AL, AAC, ACSR, ACSS, CU Cable, *Guy Strand
