Design for pulling, rigging, dragging and lifting applications. |
|
Rated loads from 1 ton to 3 ton pulling capacities. |
|
Easy to use in any direction, angle, length of pull or lift. |
|
The greater the force of the pull, the greater the clamping force to the jaws. |
|
Heavy duty safety hooks with spring loaded safety latch. |
|
Telescopic handle on model 16-GP2 and 16-GP3. |
|
Complies with ANSI/ASME B30.21 |
|
Available with or without 66 feet of wire rope. |
| Stock No. |
Pulling Cap. (Lbs) |
Lifting Cap. (Lbs) |
Wire Rope Size |
Handle Length |
Weight (Lbs) |
Wire Rope w/ Hook |
Weight (Lbs) |

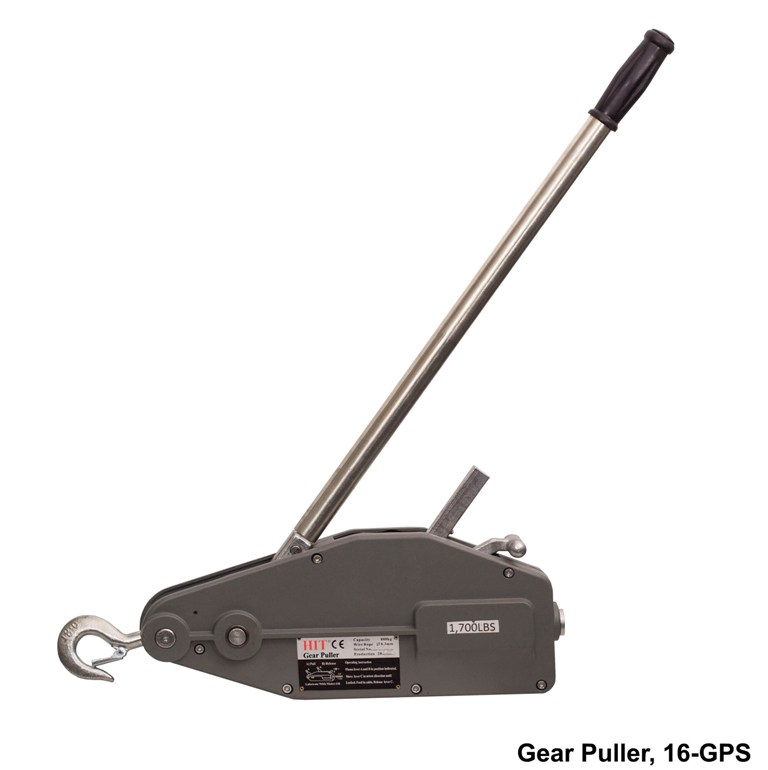

| 16-GPS-1 |
2400 |
1700 |
66FT x 5/16" |
31 1/2" |
32 |
16-GP1-W, 5/16" |
15 |
| 16-GPM-1 |
5000 |
3500 |
66FT x 7/16" |
31 1/2" - 47" |
57 |
16-GP2-W, 7/16" |
28 |
| 16-GPL-1 |
10000 |
7000 |
66FT x 5/8" |
31 1/2" - 47" |
105 |
16-GP3-W, 5/8" |
41 |
|
