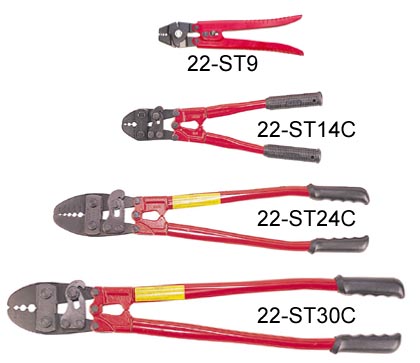

The new HIT Hand Swagers are designed for crimping Copper and Aluminum Oval Sleeves and Stop Sleeves. |
|
Jaws are made of forged alloy steel with heat treatment which assures a tight and clean compression on each crimping. |
|
The specially designed cutter gives clean and sharp cut on wire rope. |
| Stock No. |
Overall Length |
Max Cutting |
Oval Sleeves |
Wt. (Lb) |
Replacement Head |
| 22-ST9 |
9" |
1/32" |
1/32", 3/64",1/16" |
1 |
22-ST9B |
| 22-ST14C |
14" |
1/8" |
1/16", 3/32", 1/8" |
2 1/2 |
22-ST14CB |
| 22-ST24C |
24" |
7/32" |
1/16", 3/32", 1/8", 5/32", 3/16" |
6 3/4 |
22-ST24CB |
| 22-ST30C |
30" |
5/16" |
5/32", 1/4", 5/16" |
10 |
22-ST30CB |
|
