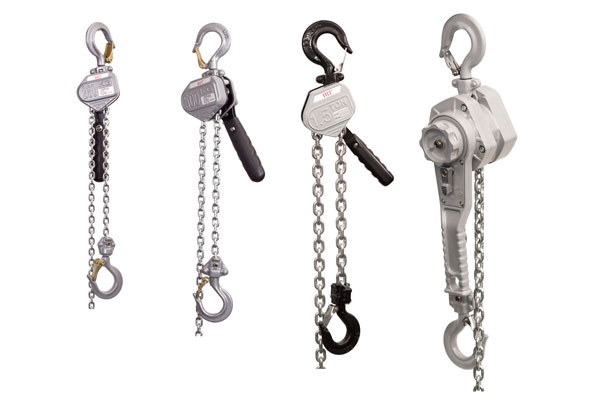

The 1/4, 1/2, 3/4, and 1-1/2 Ton compact lever hoist integrates durability, safety, and innovation, enabling it to operate in confined areas. |
|
Aluminum alloy housing makes this hoist series lightweight. |
|
Forged alloy steel hooks rotate 360-degree for easy rigging. Hooks slowly stretch to indicate an overload situation alert for jobsite safety. |
|
Dual pawl design increases safety for greater load security. |
|
Fused brake system makes the work safer and more durable. |
|
Corrosive resistant grade 100 loading chain is stronger than grade 80 loading chain and will extend life of the hoist. |
|
Complies with OSHA Regulations, ANSI/ASME B30.21 & HST-3 standard. |
| Stock No. |
Capacity (Tons) |
Capacity (Lbs) |
Headroom (Inch) |
Standard Lift (Ft.) |
Load Chain Dia. (mm) |
# of Chain Falls |
Weight (Lbs) |
| 16-LB025K |
1/4 |
500 |
7-15/16 |
5 |
3.2 x 9 |
1 |
3.5 |
| 16-LB025K10 |
1/4 |
500 |
7-15/16 |
10 |
3.2 x 9 |
1 |
4.4 |
| 16-LB025K15 |
1/4 |
500 |
7-15/16 |
15 |
3.2 x 9 |
1 |
5.3 |
| 16-LB05K |
1/2 |
1,100 |
9-7/8 |
5 |
4.3 x 12 |
1 |
5.5 |
| 16-LB05K10 |
1/2 |
1,100 |
9-7/8 |
10 |
4.3 x 12 |
1 |
7 |
| 16-LB05K15 |
1/2 |
1,100 |
9-7/8 |
15 |
4.3 x 12 |
1 |
8.6 |
| 16-LB05K20 |
1/2 |
1,100 |
9-7/8 |
20 |
4.3 x 12 |
1 |
10.1 |
| 16-LB34A |
3/4 |
1,650 |
10-1/4 |
5 |
5 x 15 |
1 |
7.5 |
| 16-LB34A10 |
3/4 |
1,650 |
10-1/4 |
10 |
5 x 15 |
1 |
9.3 |
| 16-LB34A15 |
3/4 |
1,650 |
10-1/4 |
15 |
5 x 15 |
1 |
11 |
| 16-LB34A20 |
3/4 |
1,650 |
10-1/4 |
20 |
5 x 15 |
1 |
12.8 |
| 16-LB112A |
1-1/2 |
3,300 |
13 |
5 |
7.1 x 19.9 |
1 |
14 |
| 16-LB112A10 |
1-1/2 |
3,300 |
13 |
10 |
7.1 x 19.9 |
1 |
17.6 |
| 16-LB112A15 |
1-1/2 |
3,300 |
13 |
15 |
7.1 x 19.9 |
1 |
21.1 |
| 16-LB112A20 |
1-1/2 |
3,300 |
13 |
20 |
7.1 x 19.9 |
1 |
24.9 |
| 16-LB3A |
3 |
6,600 |
17 |
5 |
7.1 x 19.9 |
2 |
20 |
| 16-LB3A10 |
3 |
6,600 |
17 |
10 |
7.1 x 19.9 |
2 |
27.3 |
| 16-LB3A15 |
3 |
6,600 |
17 |
15 |
7.1 x 19.9 |
2 |
34.5 |
| 16-LB3A20 |
3 |
6,600 |
17 |
20 |
7.1 x 19.9 |
2 |
42 |
|
