Forged alloy steel head with heat treated cutting dies. |
|
Cuts fast, clean, precisely and eliminates grinding or filing. |
|
Efficiently cuts 1/4"-20, 5/16"-18, and 3/8"-16 soft steel thread rod with interchangale dies. |
|
Used primarily on construction sites where threaded rod is used to secure pipe, conduit sprinkler systems, duct work, lighting, ceiling and many other construction components. |
|
Mounting holes for fast, easy permanent mounting to work surface. |
|

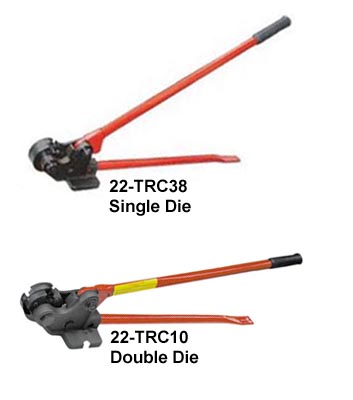

The single die model comes with a 1/4" or 3/8" die and the double-die model comes with 3/8" and 1/4"; 3/8" and 1/2" dies. The 5/16" die can be ordered separately. |
|
|
| Stock No. |
Description |
Capacity |
Cutting Die Set |
Weight (Lb) |
| 22-TRC38 |
29", with Single Die |
1/4" or 3/8" |
1/4"- 20, 3/8"-16 |
9Lb |
| 22-TRC1438 |
29", with Dual Dies |
1/4", 3/8" |
1/4"- 20, 3/8"-16 |
9Lb |
| 22-TRC3812 |
36", with Dual Dies |
3/8", 1/2" |
3/8"-16, 1/2"-13 |
17 |
| 22-TRC14D |
Replacement Die |
1/4" |
1/4" - 20 |
1/8 |
| 22-TRC516D |
Replacement Die |
5/16" |
5/16" - 18 |
1/8 |
| 22-TRC12D |
Replacement Die |
1/2" |
1/2" - 13 |
1/8 |
|
