Hand Winch >> HAND WINCH |
|

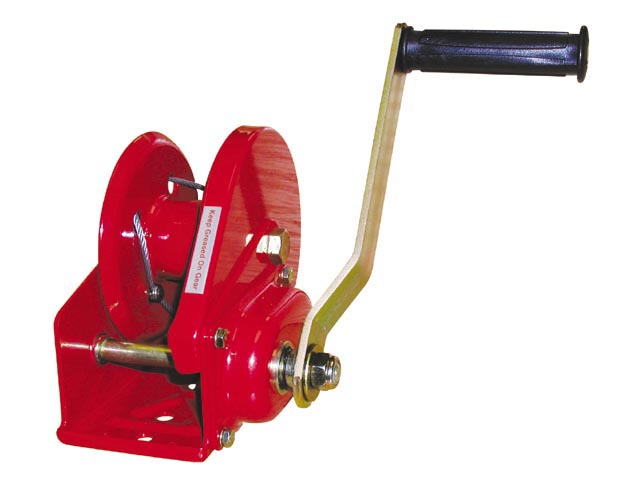

110 Series HAND WINCH |
click for bigger view
|
|
| |
Add
to Quote |
 |
For multiple applications pulling cars, boats, fence, tree, etc. |
|
All steel construction and power coat finish provides maximum durability. |
|
Automatic positive action brake pawls and discs for maximum safety. |
|
Brakes and gears are fully covered by a metal case for dust and weather protection. |
|
|
|
| Stock No. |
Pulling Capacity (Lbs) |
Lifting Capacity (Lbs) |
Gear Ratio |
Hub Dia. |
Handle Length |
Rope Size |
Rope Storage (Ft) |
Shipping Weight (Lbs) |
| 16-HW1200-1 |
1200 |
600 |
4.2:2 |
2" |
8 1/4" |
3/16" |
80 |
8 |
| 16-HW1800-1 |
1800 |
900 |
5:1 |
2 3/8" |
12 1/2" |
9/32" |
85 |
18 |
|

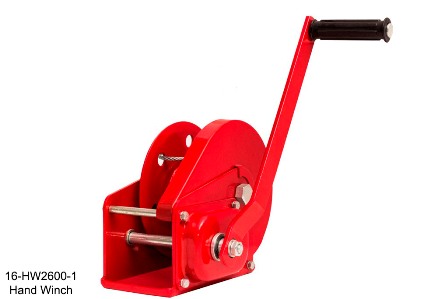

| 16-HW2600-1 |
2600 |
1300 |
10:1 |
3" |
12 1/2" |
5/16" |
54 |
23 |
|
|
|
Hand Winch >> HAND WINCH |
|
H-100 Series HAND WINCH |
click for bigger view
|
|
| |
Add
to Quote |
|
Designed for multiple applications such as raising or lowering boats, pulling cars, also used for many crane purposes. |
|
Heavy gauge steel construction gives added strength. |
|
Enamel coating finish for resistance to rust and corrosion. |
|
Automatic double brake pawls and discs for maximum safety. Positive load-actuated brake can hold the load in any position. |
|
Brakes and gears are fully covered by metal case for dust and weather protection. |
|
Capacity rating is based on one layer of line around drum as line builds on drum capacity decreases. |
|
|
|
| Stock No. |
Capacity |
Gear Ratio |
Hand Force Required |
Rope Size |
Net Weight |
| 16-HW800-3 |
800 Lbs |
4.1 : 1 |
44 Lbs |
5/32" |
6 1/2 Lbs |
| 16-HW1200-3 |
1200 Lbs |
4.1 : 1 |
33 Lbs |
3/16" |
7 1/4 Lbs |
|
| 16-HW1800-3 |
1800 Lbs |
5 : 1 |
48 Lbs |
9/32" |
17 1/2 Lbs |
|
| 16-HW2600-3 |
2600 Lbs |
10 : 1 |
41 Lbs |
5/16" |
23 Lbs |
|
|
|
