Jacks >> HEAVY DUTY HYDRAULIC BOTTLE JACK
Heavy Duty Hydraulic Bottle Jack

click for bigger view
  Add to Quote
Drop forged basefor maximum strength and product life
Electrically welded base and cylinders
Chromed pump piston and ram for increased rust resistance
Includes carrying handle for easy transportation

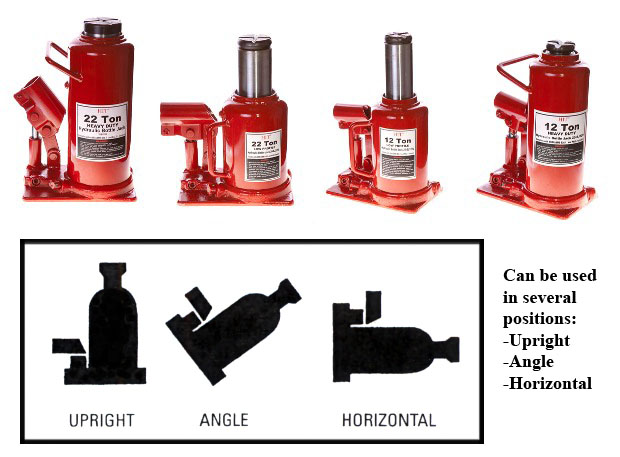

*Note that when used at an angle or horizontally, the pump must be upright and piston movement is reduced*
Complies with ANSI/ASME PALD-1 and B30.1 standards

Stock No. Capacity Base Size (Inches) Shipping Weight (lbs.) Min. Height (Inches) Max Height (inches) Piston Height (Inches) Head Screw (Height in Inches)
20-BJ2H 2 Tons 4-1/4" x 2-1/2" 5 lbs. 7-1/8" 13-5/8" 4-1/2" 2"
20-BJ3H 3 Tons 5" x 3" 6 lbs. 7-1/2" 14-3/8" 4-1/2" 2-3/8"
20-BJ5H 5 Tons 5-5/8" x 3-1/4" 9 lbs. 7-7/8" 15-1/2" 4-5/8" 2-3/4"
20-BJ8H 8 Tons 6" x 3-1/2" 13 lbs. 7-7/8" 15-1/2" 4-5/8" 2-3/4"
20-BJ12H 12 Tons 6-1/2" x 4-1/8" 18 lbs. 9-1/2" 18-1/2" 5-7/8" 3-1/8"
20-BJ12HL 12 Tons (Low Profile) 6-1/2" x 4-1/8" 15 lbs. 6-3/4" 13-3/8" 3-3/4" 3"
20-BJ22H 22 Tons 7-1/8" x 5-1/2" 26 lbs. 10-5/8" 16-7/8" 6-1/4" -
20-BJ22HL 22 Tons (Low Profile) 7-1/8" x 5-1/2" 20 lbs. 7-1/8" 12" 3-3/8" 1-1/2"
20-BJ32H 32 Tons 5-1/2" x 7-1/2" 41 lbs. 11" 17-1/2" 6-1/4" -
20-BJ50H 55 Tons 7" x 8-1/2" 67 lbs. 9-3/8" 14" 6-3/4" -
