Dynanometers >> DYNANOMETERS |
|
Dynanometers |
click for bigger view
|
|
| |
Add
to Quote |
 |
Compact, lightweight, and lower price for line of work |
|
Calibrated with computer control tension machine |
|
Both pulling eyes rotate 360 degrees |
|
Can read both KN and kgf |
|
Graduation in Lb is available |
|
Designed for line work and harsh field conditions, in hot and cold climates |
|
Accuracy +/- 3% full scale |
|
|
|

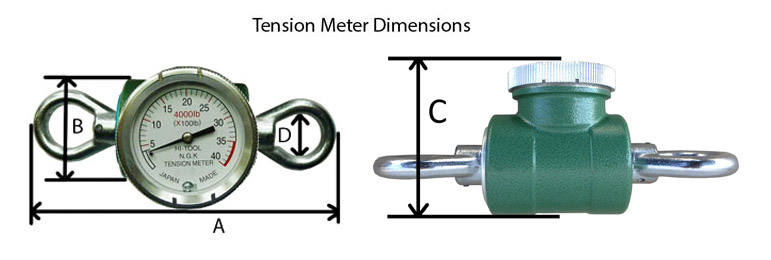

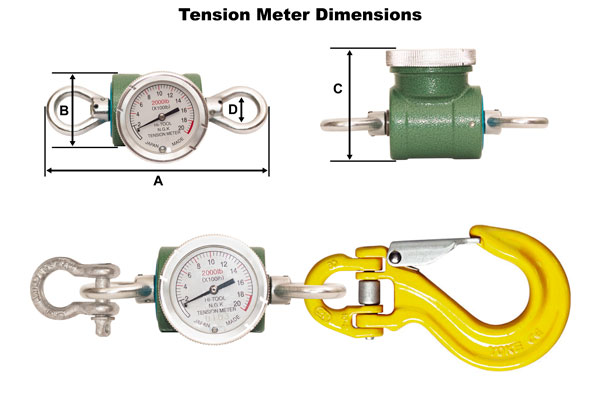

| Stock No. |
Capacity |
Graduation |
A |
B |
C |
D |
Weight |
| 16-MH1 |
2000 Lbs |
100 Lbs |
7-1/2" |
3" |
3-1/2" |
1" |
3 Lbs |
| 16-MH2 |
4000 Lbs |
100 Lbs |
7-1/2" |
3" |
3-1/2" |
1" |
3.5 Lbs |
|
| 16-MH6 |
6000 Lbs |
100 Lbs |
9-1/2" |
3 |
3-3/4" |
1-3/8" |
10 Lbs |
|
| 16-TM5 |
5 KN (500 kgf) 1,100 Lbs |
0.1 kn (10 kgf) |
6-1/16" |
3" |
3-1/2" |
2-5/32" |
2 Lbs |
|
| 16-TM1000 |
1000 Lbs |
100 Lbs |
6-1/16" |
3" |
3-1/2" |
2-5/32" |
2 Lbs |
|
| 16-TM10 |
10 KN (1 Ton) 2200 Lbs |
0.2 kn (20 kgf) |
7-1/2" |
3" |
3-1/2" |
1" |
2.2 Lbs |
|
| 16-TM2000 |
2200 Lbs |
100 Lbs |
7-1/2" |
3" |
3-1/2" |
1" |
2.2 Lbs |
|
| 16-TM20 |
20 KN (2 Tons) 4400 Lbs |
0.5 kn (50 kgf) |
7-1/2" |
3" |
3-1/2" |
1" |
2.4 Lbs |
|
| 16-TM4000 |
4400 Lbs |
100 Lbs |
7-1/2" |
3" |
3-1/2" |
1" |
2.4 Lbs |
|
| 16-TM30 |
30 KN (3 Tons) 6600 Lbs |
0.5 kn (50 kgf) |
9-1/2" |
3" |
1-3/8" |
1-3/8" |
4.2 Lbs |
|
| 16-TM6000 |
6600 Lbs |
100 Lbs |
9-1/2" |
3" |
3-3/4" |
1-3/8" |
4.2 Lbs |
|
| 16-TM50 |
50 KN (5 Tons) 11000 Lbs |
1 kn (100 kgf) |
9-3/4" |
3-1/2" |
1-3/8" |
1-3/8" |
5.7 Lbs |
|
| 16-TM10000 |
11000 Lbs |
100 Lbs |
9-3/4" |
3-1/2" |
1-3/8" |
1-3/8" |
5.7 Lbs |
|
| 16-TM100 |
100 KN (10 Tons) 22000 Lbs |
2 kn (200 kgf) |
13-3/4" |
4-1/4" |
2" |
2" |
13.2 Lbs |
|
| 16-TM20000 |
22000 |
100 Lbs |
13-3/4" |
4-1/4" |
2" |
2" |
13.2 Lbs |
|
|
|
