Manual Crimping/Compressing Tools >> MANUAL CRIMPING TOOLS

click for bigger view
  Add to Quote
Generate 9,000Lbs of crimping force. Full-Tension and Non-Tension.
Installs full range of connectors (taps, splices) from #14 AWG through 4/0.
Features two permanent die grooves, "O" and "D3" for tap connectors.
Connector Range: copper, aluminum, ACSR, Copper-weld, aluminum-weld, steel, 6201, and 5005.
Copper Taps: #10 solid - 2/0 stranded.
Aluminum, ACSR Taps: #14 solid - 4/0 ACSR
Stirrups: #6 ACSR - 4/0 ACSR
Overhead full tension deadend, full tension splices, non tension splices, and terminals conductor range: #10 stranded - 4/0 ACSR

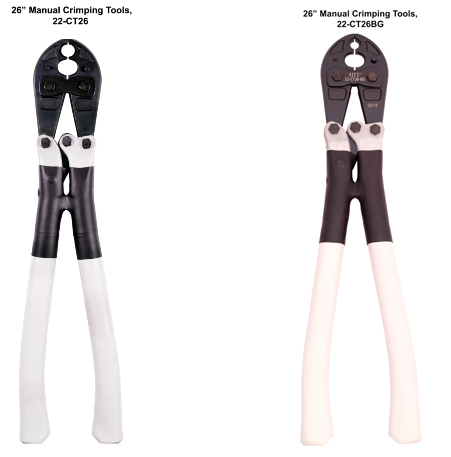

Stock No. Length WT(Lbs) Note
22-CT26 26" 7
22-CT26-BG 26" 7 BG Nose Die
