Hoist >> CHAIN HOIST

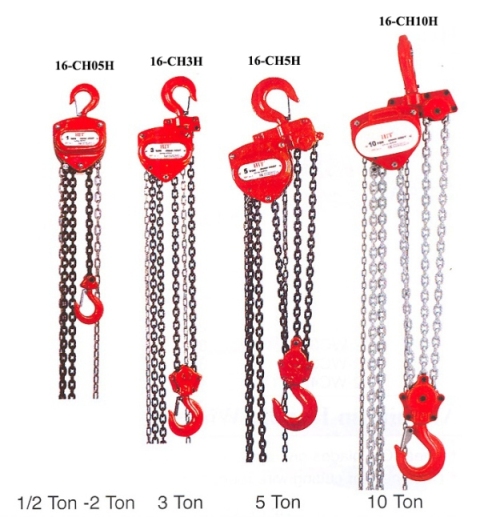

Heavy Duty H-100 Series MANUAL CHAIN HOIST

click for bigger view
  Add to Quote
All steel construction, compact and lightweight for maximum strength and easy handling.
Ideal for construction, industrial lifting, rigging and manufacturing operation.
High tensile alloy steel load chain is heat treated for safety, durability and low wear.
Chrome plated hand chain to protect against rust and corrosion.
Load chain stopper to avoid over lowering.
Hand chain wheel and brake are covered to prevent dirt, dust and moisture from hampering operation.
Load chain cover acts as a chain guide to stop dirt and dust from entering inside of the hoist.
Power coat painted against rust.
Gears are made of chrome molybdenum steel.
Two safety hooks are forged and designed to bend slowly to warn of overload.
Each HIT chain hoist is load tested to 1.5 times of rated load. Meets OSHA and AMSE/ANSI HST-3M and B30.16 standards. TUV Rheinland approved.
Custom lifts are available in any length desired. However, custom lift hoist is not returnable.

Stock No. Capacity (Ton) Standard Lift (Ft) Net Wt. (Lbs)
16-CH05H-3 1/2 10 23.00
16-CH05H15-3 1/2 15 29.70
16-CH05H20-3 1/2 20 35.40
16-CH05H30-3 1/2 30 47.30
16-CH1H-3 1 10 24.00
16-CH1H15-3 1 15 31.50
16-CH1H20-3 1 20 37.00
16-CH1H30-3 1 30 48.60
16-CH112H-3 1 1/2 10 34.00
16-CH112H15-3 1 1/2 15 42.00
16-CH112H20-3 1 1/2 20 48.60
16-CH112H30-3 1 1/2 30 61.50
16-CH2H-3 2 10 43.00
16-CH2H15-3 2 15 51.40
16-CH2H20-3 2 20 59.00
16-CH2H30-3 2 30 73.60
16-CH3H-3 3 10 51.00
16-CH3H15-3 3 15 62.00
16-CH3H20-3 3 20 72.00
16-CH3H30-3 3 30 91.70
15-CH5H-3 5 10 83.00
16-CH5H15-3 5 15 101.00
16-CH5H20-3 5 20 117.30
16-CH5H30-3 5 30 149.60

Hoist >> CHAIN HOIST

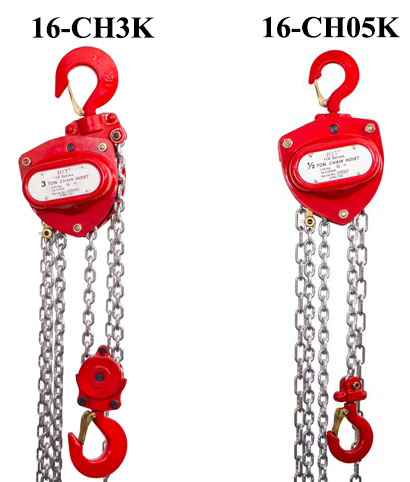

Heavy Duty H-110 Series HAND CHAIN HOIST

click for bigger view
  Add to Quote
All steel construction and compact for maximum strength.
Fused Break design increases safety and durability.
Corrosive resistant grade 100 load chain for maximum strength.
Sealed ball bearing increases efficiency and smooth operation.
Durable cast-steel safety latch will not bend during work.
Forged alloy steel hooks rotate 360 degrees for easy rigging.
Dual pawl break design increases safety and durability.
Compact and light-weighted design for low headroom applications to use in confined areas.
Ideal for construction, lifting, and manufacturing operations.
Complies with OSHA regulations, ANSI/ASME B30.16 and HST-2 standard.
offers the option of shipyard hooks, virtually elimination stretched hooks caused by point or tip loading.

Stock No. Capacity (Tons) Capacity (Lbs) Headroom Standard Lift (Ft) Load Chain Dia (MM) # of Chian Falls Weight (Lbs)
16-CH05K-1 1/2 1100 11 1/4" 10 5 x 15 1 24
16-CH05K15-1 1/2 1100 11 1/4 15 5 x 15 1 29
16-CH05K20-1 1/2 1100 11 1/4 20 5 x 15 1 34
16-CH05K30-1 1/2 1100 11 1/4 30 5 x 15 1 43
16-CH1K-1 1 2200 11 5/8 10 6.3 x 19 1 27
16-CH1K15-1 1 2200 11 5/8 15 6.3 x 19 1 34
16-CH1K20-1 1 2200 11 5/8 20 6.3 x 19 1 39
16-CH1K30-1 1 2200 11 5/8 30 6.3 x 19 1 51
16-CH112K-1 1 1/2 3300 13 3/4 10 7.1 x 21 1 34
16-CH112K15-1 1 1/2 3300 13 3/4 15 7.1 x 21 1 41
16-CH112K20-1 1 1/2 3300 13 3/4 20 7.1 x 21 1 48
16-CH112K30-1 1 1/2 3300 13 3/4 30 7.1 x 21 1 62
16-CH2K-1 2 4400 14 3/4 10 8 x 24 1 44
16-CH2K15-1 2 4400 14 3/4 15 8 x 24 1 52
16-CH2K20-1 2 4400 14 3/4 20 8 x 24 1 59
16-CH2K30-1 2 4400 14 3/4 30 8 x 24 1 75
16-CH3K-1 3 6600 20 1/8 10 7.1 x 21 2 53
16-CH3K15-1 3 6600 20 1/8 15 7.1 x 21 2 64
16-CH3K20-1 3 6600 20 1/8 20 7.1 x 21 2 74
16-CH3K30-1 3 6600 20 1/8 30 7.1 x 21 2 95
16-CH5K-1 5 11000 23 5/8 10 9 x 27 2 90
16-CH5K15-1 5 11000 23 5/8 15 9 x 27 2 105
16-CH5K20-1 5 11000 23 5/8 20 9 x 27 2 120
16-CH5K30-1 5 11000 23 5/8 30 9 x 27 2 149
16-CH10K-1 10 22000 29 5/8 10 9 x 27 4 174
16-CH10K15-1 10 22000 29 5/8 15 9 x 27 4 200
16-CH10K20-1 10 22000 29 5/8 20 9 x 27 4 228
16-CH10K30-1 10 22000 29 5/8 30 9 x 27 4 280
