Hoist >> PLAIN TROLLEYS |
|

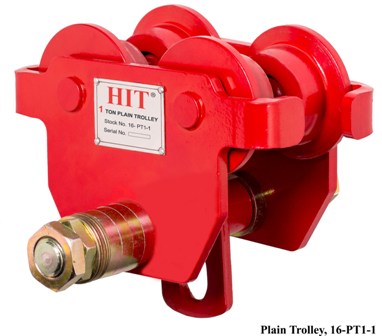

110 Series PLAIN TROLLEY |
click for bigger view
|
|
| |
Add
to Quote |
 |
All steel construction with double sealed ball bearings provides easy movement. |
|
Easily fit various sizes of rail, flange and I-beam. |
|
Built-in bumper guards increase user safety and extend the life of the trolley. |
|
Extra wide flange, easily adjust to fit the beams with the included space washers. |
|
Complies with OSHA regulations, ANSI/ASME B30.11 and B30.17 standard. |
|
|
|
| Stock No. |
Capacity (Ton) |
Beam Flange Width |
Beam Height |
Min. Radius Curve |
Weight (Lbs) |
| 16-PT05-1 |
1/2 |
3 1/8" - 8" |
4" - 19" |
36" |
22 |
| 16-PT1-1 |
1 |
4" - 12" |
4" - 19" |
39" |
39 |
|
| 16-PT2-1 |
2 |
4" - 12" |
4" -19" |
43" |
57 |
|
| 16-PT3-1 |
3 |
4" - 12" |
4" -19" |
51" |
99 |
|
| 16-PT5-1 |
5 |
4 1/4" - 12" |
4" - 19" |
55" |
120 |
|
|
|
Hoist >> PLAIN TROLLEYS |
|
H-100 Series PLAIN TROLLEYS |
click for bigger view
|
|
| |
Add
to Quote |
|
Alloy steel construction with double sealed ball bearings provides smooth and easy traversing. |
|
Smooth operation over curved or straight track. Easily installed or removed at any point along the beam. |
|
Easily fit various sizes of rail, flange and I-beam. |
|
Side plates formed to include bumbers and trolley guards ensure extra safety. |
|
Hardened axles and wheels for added durability. |
|
|
|
| Stock No. |
Capacity (Ton) |
Beam Flange Width |
Net Weight (Lb) |
| 16-PT05H-3 |
1/2 |
2 1/2" - 5" |
11 |
| 16-PT1H-3 |
1 |
2 1/2" - 8" |
16 |
|
| 16-PT2H-3 |
2 |
3 1/2" - 8" |
26 |
|
| 16-PT3H-3 |
3 |
3 1/2" - 8" |
42 |
|
| 16-PT5H-3 |
5 |
4 3/16" - 8" |
66 |
|
| 16-PT10H-3 |
10 |
5" - 12 3/16" |
298 |
|
|
|
