Gear Puller >> GEAR PULLER

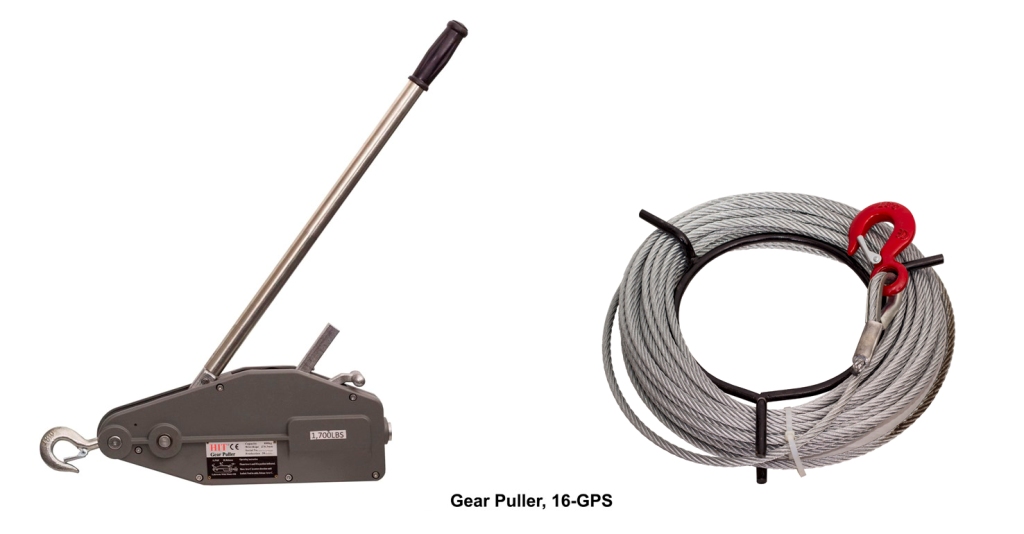

GEAR PULLER

click for bigger view
  Add to Quote
Design for pulling, rigging, dragging and lifting applications.
Rated loads from 1 ton to 3 ton pulling capacities.
Easy to use in any direction, angle, length of pull or lift.
The greater the force of the pull, the greater the clamping force to the jaws.
Heavy duty safety hooks with spring loaded safety latch.
Telescopic handle on model 16-GP2 and 16-GP3.
Complies with ANSI/ASME B30.21
Available with or without 66 feet of wire rope.

Stock No. Pulling Cap. (Lbs) Lifting Cap. (Lbs) Wire Rope Size Handle Length Weight (Lbs) Wire Rope w/ Hook Weight (Lbs)
16-GPS-1 2400 1700 66FT x 5/16" 31 1/2" 32 16-GP1-W, 5/16" 15
16-GPM-1 5000 3500 66FT x 7/16" 31 1/2" - 47" 57 16-GP2-W, 7/16" 28
16-GPL-1 10000 7000 66FT x 5/8" 31 1/2" - 47" 105 16-GP3-W, 5/8" 41
