Hoist >> LEVER HOIST |
|

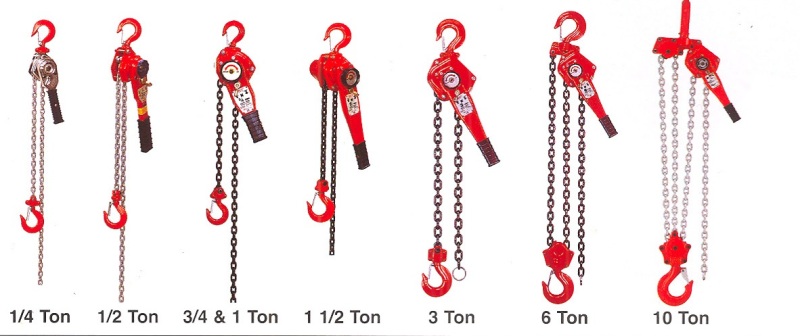

Heavy Duty H-100 Series LEVER HOIST |
click for bigger view
|
|
| |
Add
to Quote |
 |
Designed for construction and industrial lifting and pulling applications. |
|
Rugged steel body construction, lightweight, compact and portable. |
|
Powder coat painted to protect against rust and corrosion. |
|
High Tensile alloy steel chain is heat treated for safety and low-wear. |
|
Shock resistant gear case and brake cover. |
|
Safe and reliable mechanical break is designed to work trouble-free. |
|
The two forged hooks are designed to bend slowly to warn of overload. |
|
Each HIT lever hoist is load tested to 1.5 times of rated load. Meets OSHA and AMSE/ANSI HST-3M and B30.21 standards. TUV Rheinland approved. |
|
Custom lifts are available in any length desired. However, custom lift hoist is not returnable. |
|
|
|
| Stock No. |
Capacity (Ton) |
Standard Lift (Ft) |
Net Weight (Lb) |
| 16-LB025H-3 |
1/4 |
5 |
4.40 |
| 16-LB05H-3 |
1/2 |
5 |
7.90 |
|
| 16-LB05H10-3 |
1/2 |
10 |
11.00 |
|
| 16-LB34H-3 |
3/4 |
5 |
15.20 |
|
| 16-LB34H10-3 |
3/4 |
10 |
18.60 |
|
| 16-LB34H15-3 |
3/4 |
15 |
21.40 |
|
| 16-LB34H20-3 |
3/4 |
20 |
24.10 |
|
| 16-LB112H-3 |
1 1/2 |
5 |
22.00 |
|
| 16-LB112H10-3 |
1 1/2 |
10 |
26.10 |
|
| 16-LB112H15-3 |
1 1/2 |
15 |
33.30 |
|
| 16-LB112H20-3 |
1 1/2 |
20 |
29.70 |
|
| 16-LB3H-3 |
3 |
5 |
39.00 |
|
| 16-LB3H10-3 |
3 |
10 |
47.00 |
|
| 16-LB3H15-3 |
3 |
15 |
54.30 |
|
| 16-LB3H20-3 |
3 |
20 |
61.60 |
|
| 16-LB6H-3 |
6 |
5 |
62.00 |
|
| 16-LB6H10-3 |
6 |
10 |
76.00 |
|
| 16-LB6H15-3 |
6 |
15 |
90.00 |
|
| 16-LB6H20-3 |
6 |
20 |
105.60 |
|
|
|
Hoist >> LEVER HOIST |
|

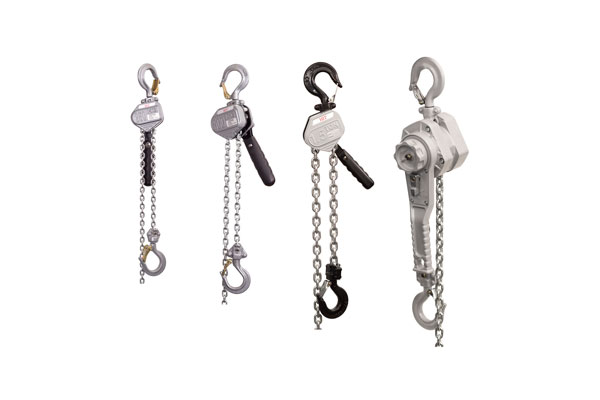

H-112 Series ALUMINUM LEVER HOIST |
click for bigger view
|
|
| |
Add
to Quote |
|
The 1/4, 1/2, 3/4, and 1-1/2 Ton compact lever hoist integrates durability, safety, and innovation, enabling it to operate in confined areas. |
|
Aluminum alloy housing makes this hoist series lightweight. |
|
Forged alloy steel hooks rotate 360-degree for easy rigging. Hooks slowly stretch to indicate an overload situation alert for jobsite safety. |
|
Dual pawl design increases safety for greater load security. |
|
Fused brake system makes the work safer and more durable. |
|
Corrosive resistant grade 100 loading chain is stronger than grade 80 loading chain and will extend life of the hoist. |
|
Complies with OSHA Regulations, ANSI/ASME B30.21 & HST-3 standard. |
|
|
|
| Stock No. |
Capacity (Tons) |
Capacity (Lbs) |
Headroom (Inch) |
Standard Lift (Ft.) |
Load Chain Dia. (mm) |
# of Chain Falls |
Weight (Lbs) |
| 16-LB025K |
1/4 |
500 |
7-15/16 |
5 |
3.2 x 9 |
1 |
3.5 |
| 16-LB025K10 |
1/4 |
500 |
7-15/16 |
10 |
3.2 x 9 |
1 |
4.4 |
|
| 16-LB025K15 |
1/4 |
500 |
7-15/16 |
15 |
3.2 x 9 |
1 |
5.3 |
|
| 16-LB05K |
1/2 |
1,100 |
9-7/8 |
5 |
4.3 x 12 |
1 |
5.5 |
|
| 16-LB05K10 |
1/2 |
1,100 |
9-7/8 |
10 |
4.3 x 12 |
1 |
7 |
|
| 16-LB05K15 |
1/2 |
1,100 |
9-7/8 |
15 |
4.3 x 12 |
1 |
8.6 |
|
| 16-LB05K20 |
1/2 |
1,100 |
9-7/8 |
20 |
4.3 x 12 |
1 |
10.1 |
|
| 16-LB34A |
3/4 |
1,650 |
10-1/4 |
5 |
5 x 15 |
1 |
7.5 |
|
| 16-LB34A10 |
3/4 |
1,650 |
10-1/4 |
10 |
5 x 15 |
1 |
9.3 |
|
| 16-LB34A15 |
3/4 |
1,650 |
10-1/4 |
15 |
5 x 15 |
1 |
11 |
|
| 16-LB34A20 |
3/4 |
1,650 |
10-1/4 |
20 |
5 x 15 |
1 |
12.8 |
|
| 16-LB112A |
1-1/2 |
3,300 |
13 |
5 |
7.1 x 19.9 |
1 |
14 |
|
| 16-LB112A10 |
1-1/2 |
3,300 |
13 |
10 |
7.1 x 19.9 |
1 |
17.6 |
|
| 16-LB112A15 |
1-1/2 |
3,300 |
13 |
15 |
7.1 x 19.9 |
1 |
21.1 |
|
| 16-LB112A20 |
1-1/2 |
3,300 |
13 |
20 |
7.1 x 19.9 |
1 |
24.9 |
|
| 16-LB3A |
3 |
6,600 |
17 |
5 |
7.1 x 19.9 |
2 |
20 |
|
| 16-LB3A10 |
3 |
6,600 |
17 |
10 |
7.1 x 19.9 |
2 |
27.3 |
|
| 16-LB3A15 |
3 |
6,600 |
17 |
15 |
7.1 x 19.9 |
2 |
34.5 |
|
| 16-LB3A20 |
3 |
6,600 |
17 |
20 |
7.1 x 19.9 |
2 |
42 |
|
|
|
Hoist >> LEVER HOIST |
|

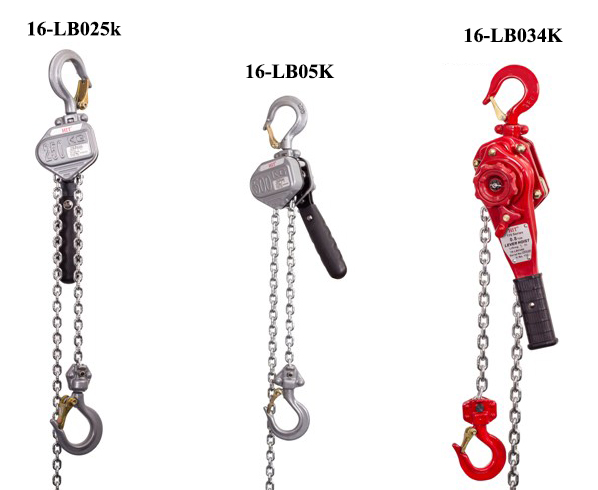

Heavy Duty H-110 Series LEVER HOIST |
click for bigger view
|
|
| |
Add
to Quote |
|
The 1/4Ton & 1/2Ton compact lever hoist integrates durability, safety and innovation enabling it to operate in the confined areas. |
|
Durable, impact resistant aluminum alloy housing makes this hoist in light weight. Each piece comes with a nylon carrying case. |
|
Dual pawl design increases safety for great load security. |
|
Forged alloy steel hooks rotate 360 degrees for easy rigging. |
|
The 0.8, 1, 1.5, 3 and 6 tons lever hoist are the most advanced design. |
|
Fused brake system makes the work safer and more durable. |
|
Forged alloy steel hooks rotate 360 degrees for convenient rigging, hooks slowly stretch to indicate an overload situation alert for jobsite safety. |
|
Heavy duty cast steel safety latches increased durability and easy replacement. |
|
Caged needle bearing increases efficiency and smooth operation. |
|
Corrosive resistant grade 100 loading chain is stronger than the grade 80 load chain and will extend the life of the hoist. |
|
Every 1/4Ton and 1/2Ton lever comes with a rugged vinyl pouch with belt loop. |
|
Complies with OSHA regulations, ANSI/ASME B30.21 and HST-3 Standard. |
|
Certificated load tested to 125% of rated capacity. |
|
|
|
| Stock No. |
Capacity (Tons) |
Capacity (Lbs) |
Headroom (Inch) |
Standard Lift (Ft) |
Load Chain Dia. (MM) |
# of Fall |
Weight (Lbs) |
| 16-LB025K-1 |
0.25 |
500 |
7 15/16 |
5 |
3.2 x 9 |
1 |
3.5 |
| 16-LB025K10-1 |
0.25 |
500 |
7 15/16 |
10 |
3.2 x 9 |
1 |
4.4 |
|
| 16-LB025K15-1 |
0.25 |
500 |
7 15/16 |
15 |
3.2 x 9 |
1 |
5.3 |
|
| 16-LB05K-1 |
0.5 |
1000 |
9 7/8 |
5 |
4.3 x 12 |
1 |
5.5 |
|
| 16-LB05K10-1 |
0.5 |
1000 |
9 7/8 |
10 |
4.3 x 12 |
1 |
7 |
|
| 16-LB05K15-1 |
0.5 |
1000 |
9 7/8 |
15 |
4.3 x 12 |
1 |
8.6 |
|
| 16-LB34K-1 |
0.8 |
1760 |
11 |
5 |
5.6 x 15.7 |
1 |
12.5 |
|
| 16-LB34K10-1 |
0.8 |
1760 |
11 |
10 |
5.6 x 15.7 |
1 |
14.9 |
|
| 16-LB34K15-1 |
0.8 |
1760 |
11 |
15 |
5.6 x 15.7 |
1 |
17.3 |
|
| 16-LN34K20-1 |
0.8 |
1760 |
11 |
20 |
5.6 x 15.7 |
1 |
19.8 |
|
| 16-LB1K-1 |
1 |
2200 |
11 7/8 |
5 |
5.6 x 12.5 |
1 |
13 |
|
| 16-LB1K10-1 |
1 |
2200 |
11 7/8 |
10 |
5.6 x 12.5 |
1 |
15.3 |
|
| 16-LB1K15-1 |
1 |
2200 |
11 7/8 |
15 |
5.6 x 12.5 |
1 |
17.5 |
|
| 16-LB1K20-1 |
1 |
2200 |
11 7/8 |
20 |
5.6 x 12.5 |
1 |
20.2 |
|
| 16-LB112K-1 |
1.6 |
3520 |
13 3/4 |
5 |
7.1 x 19.9 |
1 |
17.5 |
|
| 16-LB112K10-1 |
1.6 |
3520 |
13 3/4 |
10 |
7.1 x 19.9 |
1 |
21.3 |
|
| 16-LB112K15-1 |
1.6 |
3520 |
13 3/4 |
15 |
7.1 x 19.9 |
1 |
25 |
|
| 16-LB112K20-1 |
1.6 |
3520 |
13 3/4 |
20 |
7.1 x 19.9 |
1 |
28.5 |
|
| 16-LB3K-1 |
3.2 |
7040 |
15 5/8 |
5 |
10 x 28 |
1 |
30 |
|
| 16-LB3K10-1 |
3.2 |
7040 |
15 5/8 |
10 |
10 x 28 |
1 |
37.5 |
|
| 16-LB3K15-1 |
3.2 |
7040 |
15 5/8 |
15 |
10 x 28 |
1 |
45 |
|
| 16-LB3K20-1 |
3.2 |
7040 |
15 5/8 |
20 |
10 x 28 |
1 |
53 |
|
| 16-LB6K-1 |
6.3 |
13860 |
21 1/4 |
5 |
10 x 28 |
2 |
57.3 |
|
| 16-LB6K10-1 |
6.3 |
13860 |
21 1/4 |
10 |
10 x 28 |
2 |
72 |
|
| 16-LB6K15-1 |
6.3 |
13860 |
21 1/4 |
15 |
10 x 28 |
2 |
88 |
|
| 16-LB6K20-1 |
6.3 |
13860 |
21 1/4 |
20 |
10 x 28 |
2 |
103 |
|
| 16-LB05K20-1 |
0.5 |
1000 |
9 7/8 |
00 |
4.3 x 12 |
1 |
10.8 |
|
|
|
Hoist >> LEVER HOIST |
|

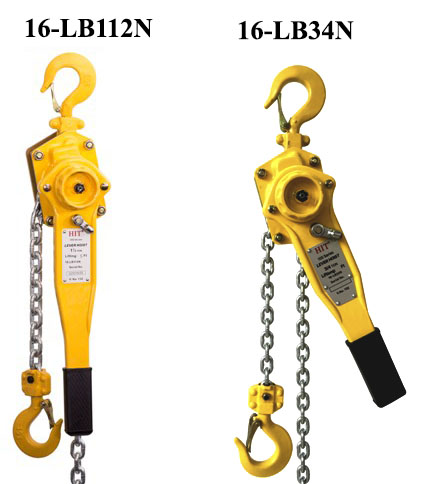

Heavy Duty 105 Series LEVER HOIST |
click for bigger view
|
|
| |
Add
to Quote |
|
105 Series Lever Hoists combine reliability, durability and safety that designed to perform in contractor grade for general purpose use. |
|
Dual pawl brake design increases safety. |
|
Forged alloy steel hook rotate 360 degrees for easy rigging. |
|
Hooks slowly stretch to indicate and overland situation increases job site safety. |
|
Needle bearing gives long life with low wear reducing down time. |
|
Grade 80 load chain finished with black oxide for durability. |
|
All steel construction, impact resistant covers provide protection and durability. |
|
Complies with OASHA regulations, ANSI/ASME B30.21 and HST-3 standards. |
|
Certificated load tested 125% of rated capacity. |
|
|
|
| Stock No. |
Capacity (Tons) |
Capacity (Lbs) |
Headroom (Inch) |
Standard Lift |
Load Chain Dia (MM) |
# of Fall |
Weight (Lbs) |
| 16-LB34N-1 |
3/4 |
1760 |
9 1/8 |
5 |
6 x 18 |
1 |
14 |
| 16-LB34N10-1 |
3/4 |
1760 |
9 1/8 |
10 |
6 x 18 |
1 |
17 |
|
| 16-LB34N15-1 |
3/4 |
1760 |
9 1/8 |
15 |
6 x 18 |
1 |
19 |
|
| 16-LB34N20-1 |
3/4 |
1760 |
9 1/8 |
20 |
6 x 18 |
1 |
22 |
|
| 16-LB1N-1 |
1 |
2200 |
11 5/8 |
5 |
6 x 18 |
1 |
12 |
|
| 16-LB1N10-1 |
1 |
2200 |
11 5/8 |
10 |
6 x 18 |
1 |
15 |
|
| 16-LB1N15-1 |
1 |
2200 |
11 5/8 |
15 |
6 x 18 |
1 |
17 |
|
| 16-LB1N20-1 |
1 |
2200 |
11 5/8 |
20 |
6 x 18 |
1 |
19 |
|
| 16-LB112N-1 |
1 1/2 |
3300 |
14 7/8 |
5 |
8 x 24 |
1 |
25 |
|
| 16-LB112N10-1 |
1 1/2 |
3300 |
14 7/8 |
10 |
8 x 24 |
1 |
30 |
|
| 16-LB112N15-1 |
1 1/2 |
3300 |
14 7/8 |
15 |
8 x 24 |
1 |
34 |
|
| 16-LB112N20-1 |
1 1/2 |
3300 |
14 7/8 |
20 |
8 x 24 |
1 |
39 |
|
| 16-LB3N-1 |
3 |
6600 |
18 7/8 |
5 |
10 x 30 |
1 |
43 |
|
| 16-LB3N10-1 |
3 |
6600 |
18 7/8 |
10 |
10 x 30 |
1 |
50 |
|
| 16-LB3N15-1 |
3 |
6600 |
18 7/8 |
15 |
10 x 30 |
1 |
57 |
|
| 16-LB3N20-1 |
3 |
6600 |
18 7/8 |
20 |
10 x 30 |
1 |
65 |
|
| 16-LB6N-1 |
6 |
13200 |
24 1/4 |
5 |
10 x 30 |
2 |
69 |
|
| 16-LB6N10-1 |
6 |
13200 |
24 1/4 |
10 |
10 x 30 |
2 |
76 |
|
| 16-LB6N15-1 |
6 |
13200 |
24 1/4 |
15 |
10 x 30 |
2 |
84 |
|
| 16-LB6N20-1 |
6 |
13200 |
24 1/4 |
20 |
10 x 30 |
2 |
91 |
|
|
|
